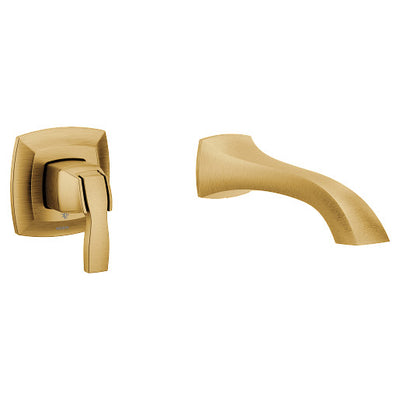

COMPLETE SET WITH ANGLE VALVE AND M-PACT VALVE WMV130CIS

Crisp edges and uncomplicated style features give the Voss collection an ageless, yet fashion-forward, presence. Each silhouette brings a confident Transitional style to the bath.

Specification:
Application : Two Hole
Connection Size : 1/2"
Connection Type : Slip Fit
Spout Reach : 10.00 "
Tub Spout Type : Non Diverter

Benefits
-Brushed gold pairs rich, warm tones with lush texturing for a timeless finish
-One-handle lever handle makes it easy to adjust the water
-Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
-Wall mount installation frees up extra space on the countertop
-Complies with Americans with Disabilities Act (ADA) specifications
-Limited lifetime warranty

DESCRIPTION
• Metal construction with various finishes identified by suffix
• Separate handle trim and spout to accommodate installation flexibility
• 10”Ultrathin tub spout allows for a longer
distance between the wall and the tub
• 4.5” sleek and compact handle trim escutcheon
• Trim Kit includes Handle Trim, Tub Spout, and Cartridge
•Hot and cold indicators
OPERATION
• Lever style handle with temperature indicator on the escutcheon
• Variable volume control handle is lifted in a 0 to 25 degree arc
• Temperature operates through an 110 degree arc
of handle rotation (full cold to full hot)
• Adjustable temperature limit stop to control
maximum hot water temperature Flow
FLOW
• Tub Faucet is designed to deliver 8 GPM/min (30.28 L/min) at 60psi
• Note: Installation that is inconsistent with Moen
recommendations may degrade flow rate
CARTRIDGE
• 1215 Ceramic Disk High Flow Volume Control Cartridge
• Non-Pressure balancing cartridge – only
intended for tub filler applications.
• Non-metallic/non-ferrous and plastic material
• Not compatible with back to back installations
STANDARDS
• Third party certified to ASME A112.18.1/CSA B125.1, and
all applicable requirements referenced therein
