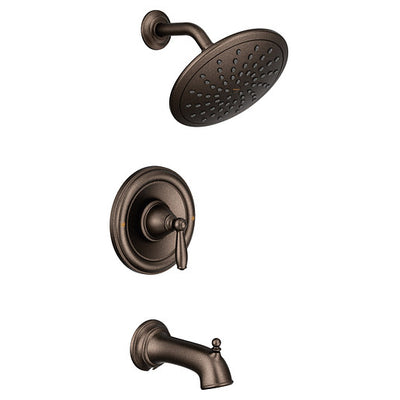

COMPLETE SET WITH ANGLE VALVE AND M-PACT VALVE 2510
Featuring intricate architectural details that add a look of grandeur to your Bath, the Brantford collection will offer a timeless, elegant appeal to your decor. With each understated detail, Brantford is sure to create an enduring style in your home.

Specification:
Showerhead Flow Rate : 1.75 Gpm (6.65 L/Min) Max.
Showerhead Functions : One-Function
Showerhead Size : 8" Diameter Spray Head
Showerhead Type : Eco-Performance Rainshower
Spout Connection Type : Slip Fit
Spout Length : 6 1/2"
Tub Spout Type : Diverter

Benefits
-Oil rubbed bronze finish incorporates the warmth of bronze with tumbled light and dark accents, creating an antiqued look
-Lever handle makes it easy to adjust the water
-Install with Posi-Temp® pressure balancing control valve to maintain water temperature control in the shower
-Generously sized 8" diameter this eco performance showerhead conserves water without sacrificing performance
-Full rainshower
-6 1/2" tub spout length
-Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
-Complies with Americans with Disabilities Act (ADA) specifications
-Meets EPA WaterSense® criteria to conserve water without sacrificing performance
Limited lifetime warranty

DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Handle operates counterclockwise through a 270˚ arc with off at 6 o’clock and
maximum hot at the 9 o’clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintains selected discharge temperature to ± 3°
FLOW
• EP suffix models are limited to 2.0 gpm (7.6 L/min) max for products manufactured prior to June 30, 2018. EP suffix models manufactured after June 30,
2018 are limited to 1.75 gpm (6.7 L/min) max.
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
• EP suffix models are third party certified to WaterSense®
• ADA for lever handles
