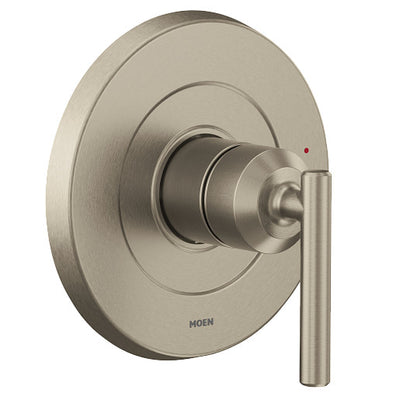

COMPLETE SET WITH ANGLE VALVE AND M-PACT VALVE U140CIS

The Gibson collection gives contemporary industrial design a softer point of view. The tubular spout and handles mirror the look of exposed piping while polished edges to create a chic and Modern style.

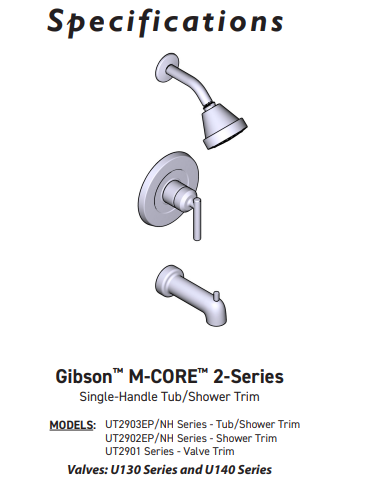

Specification:
Red/Blue Markings

Benefits
-Brushed nickel finish brings the warm look of stainless to your bath
-Lever handle makes it easy to adjust the water
-M-CORE 2-Series cartridge included with trim
-Showerhead sold separately
-Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
-Complies with Americans with Disabilities Act (ADA) specifications
-Limited lifetime warranty

DESCRIPTION
• Metal construction with varoius finishes idenditfied by suffix
• Shower Only kits include showerhead, arm, flange
• Tub/shower kits include showerhead, arm, flange and diverter spout
OPERATION
• Handle operates counterclockwise through a 150˚
arc with off at 6 o’clock and maximum hot at the 1
o’clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control
maximum hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to +/- 3.6˚F (+/- 2˚C)
FLOW
• EP suffix models contain a showerhead limited to 1.75 gpm (6.6 L/min)
• NH suffix models contain no showerhead
CARTRIDGE
• 1212 Ceramic Disk Temperature Control Cartridge
• Non-metallic/non-ferrous and plastic material
• Accommodates back to back installations
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125-
1, ASSE 1016/ASME A112.1016/CSA B.125.16 and all
applicable requirements reference therein
• Moen’s M-CORE™ pressure balance system is capable of meeting the
pressure and temperature variation requirements of ASSE 1016/ASME
A112.1016/CSA B125.16 when tested as low as 1.3 gpm (4.9 L/min)
• EP suffix models are third party certified to EPA WaterSense®
• ADA compliant for lever handle
