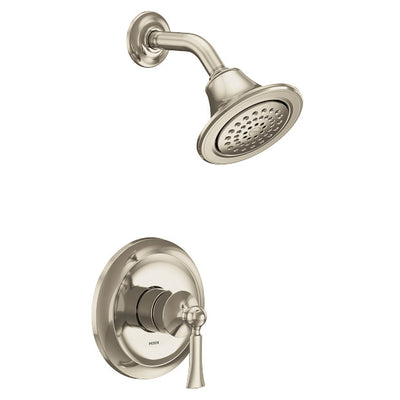

COMPLETE SET WITH ANGLE VALVE AND M-PACT VALVE U140CIS
Create a relaxed, yet Traditional, style statement in the bath with Wynford faucets and accessories. Multiple faucet designs and finish choices give you a variety of decorating options to truly enhance and personalize your space.

Benefits :
-Polished nickel finish provides a mirror-like warm metallic look, adding a refined touch to your space
-Lever handle makes it easy to adjust the water
-M-CORE 2-Series cartridge included with the trim
-5-7/8" diameter spray head this eco performance showerhead conserves water without sacrificing performance
-Full spray
-Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
-Complies with Americans with Disabilities Act (ADA) specifications
-Meets EPA WaterSense® criteria to conserve water without sacrificing performance
-Limited lifetime warranty

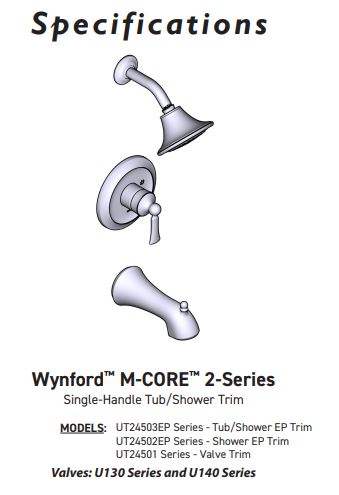

Specification:
-Showerhead Flow Rate : 1.75 Gpm (6.65 L/Min) Max.
-Showerhead Functions : One-Function

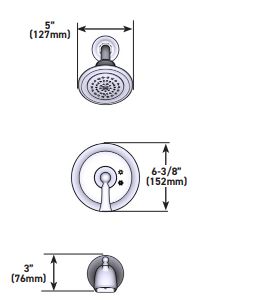

-Showerhead Size : 5-7/8" Diameter Spray Head
-Showerhead Type : Eco-Performance Rainshower

DESCRIPTION
• Metal construction with various finishes identified by suffix
• Shower Only kits include showerhead, arm, flange
• Tub/shower kits include showerhead, arm, flange and diverter spout
OPERATION
• Handle operates counterclockwise through 150˚ arc
with off at 6 o’clock and maximum hot at the 1 o’clock
position. Shut off in clockwise direction
• Adjustable temperature limit stop to control
maximum hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to +/- 3.6˚F (+/- 2˚C)
FLOW
• EP suffix models contain a showerhead limited to 1.75 gpm (6.6 L/min)
CARTRIDGE
• 1212 Ceramic Disk Temperature Control Cartridge
• Non-metallic/non-ferrous and plastic material
• Accommodates back to back installations
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125-
1, ASSE 1016/ASME A112.1016/CSA B.125.16 and all
applicable requirements reference therein
• Moen’s M-CORE™ pressure balance system is capable of meeting the
pressure and temperature variation requirements of ASSE 1016/ASME
A112.1016/CSA B125.16 when tested as low as 1.3 gpm (4.9 L/min)
• EP suffix models are third party certified to EPA WaterSense®
• ADA compliant for lever handle
