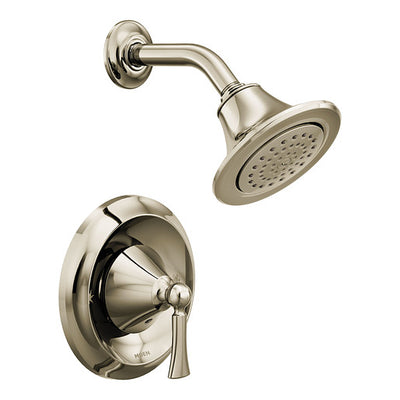

COMPLETE SET WITH ANGLE VALVE AND M-PACT VALVE 2510
Create a relaxed, yet Traditional, style statement in the bath with Wynford faucets and accessories. Multiple faucet designs and finish choices give you a variety of decorating options to truly enhance and personalize your space.

Benefits :
-Polished nickel finish provides a mirror-like warm metallic look, adding a refined touch to your space
-Lever handle makes it easy to adjust the water
-LifeShine® finish assures the ultimate in durability and is guaranteed not to tarnish, corrode or flake off
-Install with Posi-Temp® pressure balancing control valve to maintain water temperature control in the shower
-5-7/8" diameter spray head
-Full spray
-Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
-Complies with Americans with Disabilities Act (ADA) specifications
-Limited lifetime warranty

specification:
Showerhead Flow Rate : 2.5 Gpm (9.5 L/Min) Max.
Showerhead Functions : One-Function

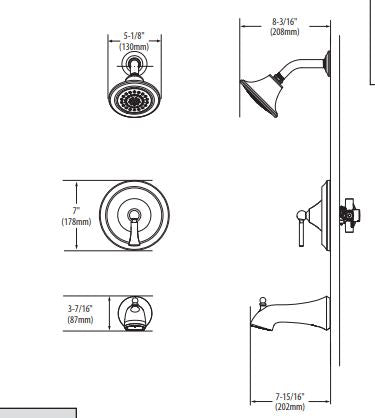

Showerhead Size : 5-7/8" Diameter Spray Head
Showerhead Type : Standard

FAUCET DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Handle operates counterclockwise through a 270˚ arc with off at 6 o’clock
and maximum hot at the 9 o’clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge temperature
to ± 3°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min) at 80 psi
• EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
• NH suffix models contain no showerhead
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
• EP suffix models are third party certified to WaterSense®
• ADA for lever handle
