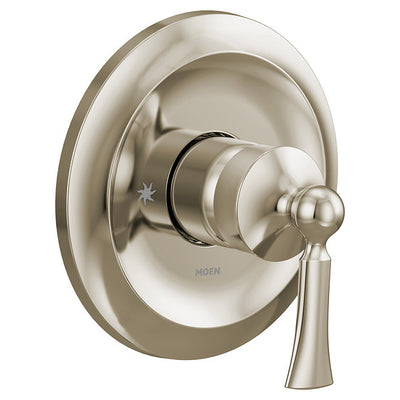

COMPLETE SET WITH ANGLE VALVE AND M-PACT VALVE U140CIS
Create a relaxed, yet Traditional, style statement in the bath with Wynford faucets and accessories. Multiple faucet designs and finish choices give you a variety of decorating options to truly enhance and personalize your space.

Benefits :
-Polished nickel finish provides a mirror-like warm metallic look, adding a refined touch to your space
-Lever handle makes it easy to adjust the water
-M-CORE 4 port
-Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
-M-CORE 2-Series cartridge included with the trim
-Complies with Americans with Disabilities Act (ADA) specifications
-Limited lifetime warranty

FAUCET DESCRIPTION
• Metal construction with varoius finishes idenditfied by suffix
• Shower Only kits include showerhead, arm, flange
• Tub/shower kits include showerhead, arm, flange and diverter spout
OPERATION
• Lever style handle with temperature indicator on the escutcheon.
• Variable volume control handle is lifted in a 0 to 25° arc
• Temperature operates through an 110° arc of handle rotation (full cold to full hot)
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintains selected discharge temperature to ± 2°F
FLOW
• Showerhead limited to 2.5 gpm (9.5 L/min)
• EP suffix models contain a showerhead limited to 1.75 gpm (6.62 L/min)
CARTRIDGE
• 1213 Ceramic Disk Volume Control Cartridge
• Non-metallic/non-ferrous and plastic material
• Not compatible with back to back installations
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125-1, ASSE 1016 and all
applicable requirements reference therein
• Moen’s M-CORE™ pressure balance system is capable to meet the pressure
and temperature variation requirements of ASSE 1016 when tested as low as
1.5 gpm (5.68 L/min)
• EP suffix models are third party certified to EPA WaterSense®
• ADA for lever handle
