Design
Design
Wall hood

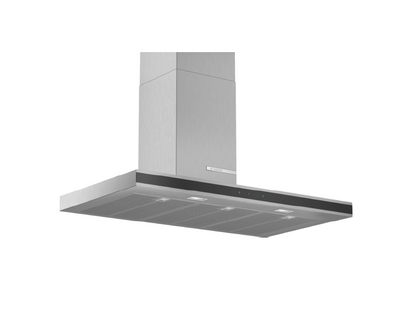

90 cm Stainless Steel Chimney hood

TouchControl

Performance
Speed settings: 3 speeds plus intensive setting

Extraction rate according to EN 61591 ø 15 cm:
max. Normal use453m³/h
Intensive739 m³/h

Operating noise level according to EN 60704-3 and EN 60704-2-13 exhaust air at Max. normal use: 65 dB(A) re 1 pW

Comfort
Automatically switches back from intensive to normal setting after 6 min

Twin channel high performance fan motor

Capacitor energy efficient

2 x 1.5W LED

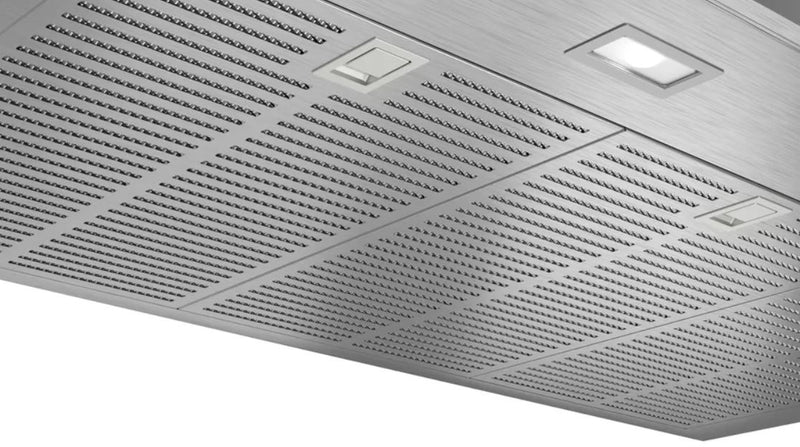

Dishwasher safe grease filter

Cass.w.stainl. st. perf. plate

Back-pressure flap: Yes

Light Intensity: 214 lux

Colour Temperature: 3500 K

Energy Efficiency Class: B*

Average Energy Consumption: 62.5 kWh/year*

Blower Efficiency Class: B*

Lighting Efficiency Class: A*

Grease Filtering Efficiency Class: B*

Noise min./max. Normal Level: 52/65 dB*

Technical information:
Suitable for ducted or re-circulated operation

Recirc. kit or clean air kit

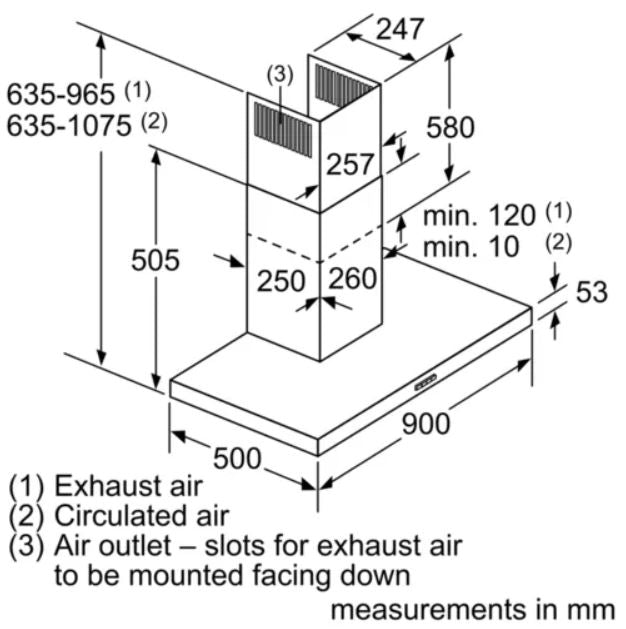

Dimensions exhaust air (HxWxD): 635-965 x 900 x 500 mm

Dimensions recirculating (HxWxD): 635-1075 x 900 x 500 mm

Dimensions recirculating with CleanAir module (HxWxD):
703 x 900 x 500mm - mounting with outer chimney
833-1163 x 900 x 500 mm - mounting with telescopic chimney

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Power rating: 255 W

Electrical cable lenght 1.3 m
