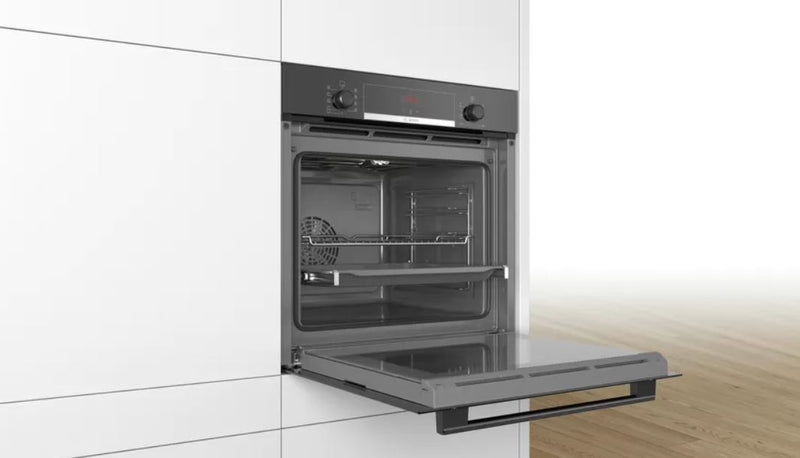

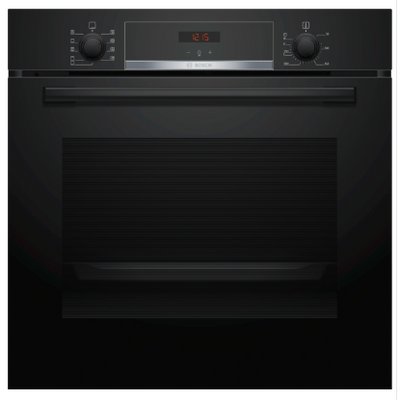

BOSCH HBA534EB0K Series 4 Oven Black
Kitchen
SKU: HBA534EB0K
Technical Specifications
General
Width of the product
594 mm
Height of the product
595 mm
Usable volume (of cavity) - NEW (2010/30/EC)
71 l
Cooking method
Bottom heat, Full width grill, Hot Air, Hotair gentle, - Hot air grilling, - Pizza setting, - Top and bottom heat
Highlights
Child-proof Lock, ecoClean, Fast Pre-heating function
Energy efficiency rating
A
Construction type
Color / Material Front
Black
Built-in / Free-standing
Built-in
Control Panel Material
Glass
Type of control setting devices - cavity 1
retractable, Rotary knob, round
Door Material
Glass
Energy input
Electric
Installation type
Built-in
Door hinge
Bottom
Size and weight
Cavity width
48.0 cm
Cavity height
35.7 cm
Cavity depth
41.5 cm

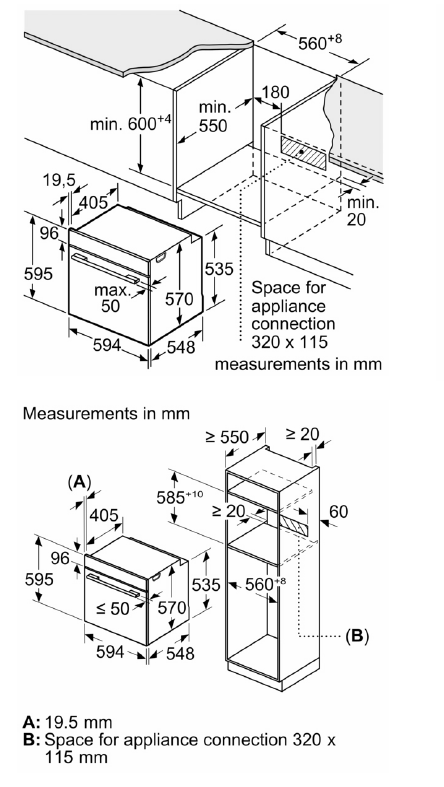

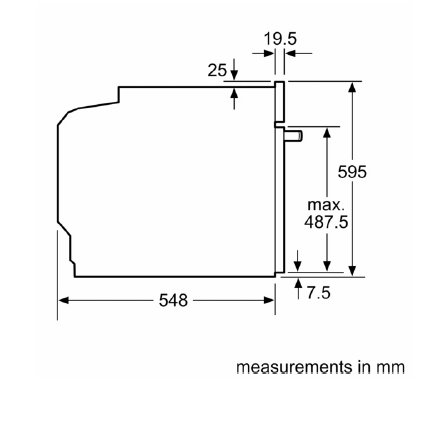

Dimensions
595 x 594 x 548 mm
Cut-out width
560 mm
Cut-out height
585 mm
Cut-out depth
550 mm
Depth with door open
1,040 mm
Net weight
31.6 kg
Oven
Area of largest baking sheet
1,290 cm²
Hot air temperature max. (°C)
275 °C
T/b heating temperature max. (°C)
275 °C
Product size
Large
Door temperature
50 °C
Consumption values
Energy efficiency rating
A
Energy consumption per cycle conventional (2010/30/EC)
0.97 kWh/cycle
Energy consumption per cycle forced air convection (2010/30/EC)
0.81 kWh/cycle
Comfort
Pull-out system
1-level
Are some hobs controls integrated?
No
Connection
Length electrical supply cord
120 cm
Fuse protection
16 A
Plug type
No plug (electrical connection by electrician)
Voltage
220-240 V
General
Width of the product
594 mm
Height of the product
595 mm
Usable volume (of cavity) - NEW (2010/30/EC)
71 l
Cooking method
Bottom heat, Full width grill, Hot Air, Hotair gentle, - Hot air grilling, - Pizza setting, - Top and bottom heat
Highlights
Child-proof Lock, ecoClean, Fast Pre-heating function
Energy efficiency rating
A
Door opening
Drop down
