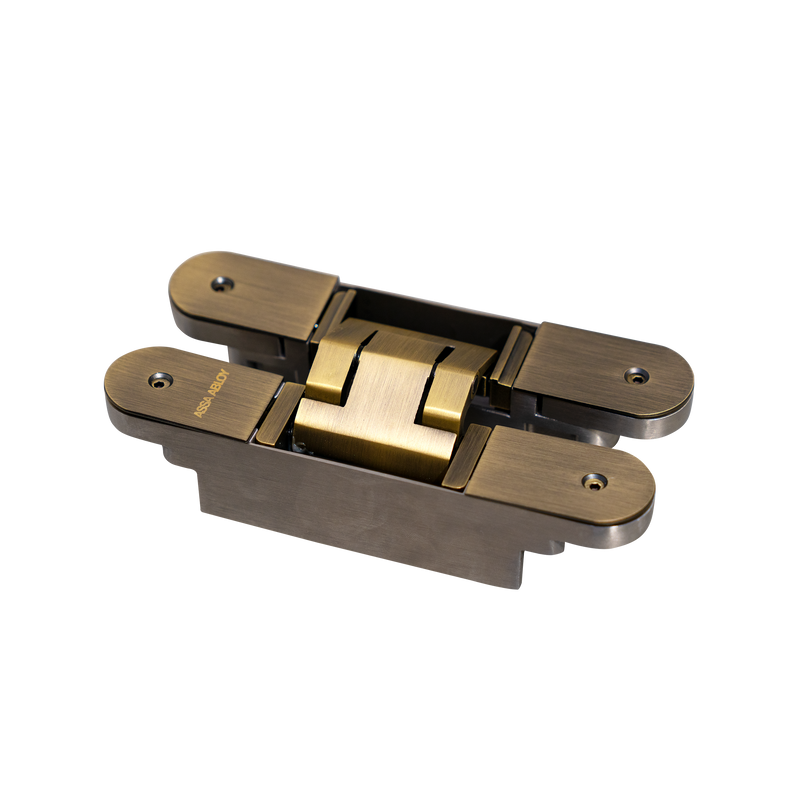

Assa Abloy 3d adjustable stainless steel concealed hinge antique brass finish AA-3CH-03-AB
Assa Abloy
SKU: AA-3CH-03-AB
3D adjustable concealed hinge
Application: For wooden/steel/aluminium frames
Door thickness: >40mm; Opening angle: <180˚
Door weight: AA-3CH-03-80 kg with 3 Hinges, AA-3CH-04-120 kg with 3 hinges
Door width: AA-3CH-03- ≤1000mm, AA-3CH-04-≤1200mm
Adjustment feature: AA-3CH-03- Continuously 3D adjustable height,
side ±3.0mm and closing pressure ±1mm, AA-3CH-04- (side ±3.5mm)
Application: For wooden/steel/aluminium frames
Door thickness: >40mm; Opening angle: <180˚
Door weight: AA-3CH-03-80 kg with 3 Hinges, AA-3CH-04-120 kg with 3 hinges
Door width: AA-3CH-03- ≤1000mm, AA-3CH-04-≤1200mm
Adjustment feature: AA-3CH-03- Continuously 3D adjustable height,
side ±3.0mm and closing pressure ±1mm, AA-3CH-04- (side ±3.5mm)
