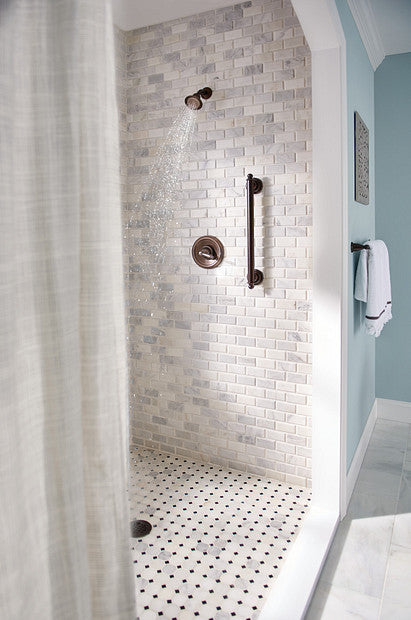

Bath Accessories Brantford Oil Rubbed Bronze 18" Designer Grab Bar YG2218ORB
Bottega Artisan
SKU: YG2218ORB
Featuring intricate architectural details that add a look of grandeur to your Bath, the Brantford collection will offer a timeless, elegant appeal to your decor. With each understated detail, Brantford is sure to create an enduring style in your home.
Assembled Dimensions : 21.24" X 3.2" X 2.9"
Materials: Grab Bar posts and bars are constructed of stainless steel.
Benefits
-Oil rubbed bronze finish incorporates the warmth of bronze with tumbled light and dark accents, creating an antiqued look
-Supports up to 500 lbs.
-Complies with Americans with Disabilities Act (ADA) specifications
-18" bar length
-1.25" bar diameter
-Corrosion resistant
-Stainless steel construction for added durability
-Limited lifetime warranty
Installation Instructions:
1. Please note that screws MUST be mounted into a wood stud for secure installation.
2. Decide whether you would like to position your grab bar horizontally, vertically or at an angle,
remembering that BOTH ends of the grab bar MUST be positioned over a wood stud (unless using
secure mount anchors).
3. For easier installation and mounting remove 3 set screws from each flange and remove bar from
SecureMount™ Flange.
4. Remove cover and re-assemble flange to bar by tightening 3 set screws.
5. Place grab bar and mark three mounting locations on each of the two grab bar flanges with a
pencil.
6. Drill 1/8" diameter pilot holes at each screw location. Make sure to drill into the stud.
7. Install 3 screws and washers each SecureMount™ flange and tighten until secure. If desired, apply
silicone caulk to the back of the SecureMount™ plate to guard against water penetration.
8. After screws are installed each side, dis-assemble bar from SecureMount™ flange by removing set
screws.
9. Re-install covers.
10. Place bar over SecureMount™ flanges and tighten all set screws.
11. Snap on covers
